- [ PROPELLERS]: The 5045 propellers are made of durable plastic material and are designed for optimal performance and control during flights.
- [USER-FRIENDLY DESIGN]: The propellers are easy to install and remove, providing convenience for quick replacements or maintenance of your RC drone.
- [VALUE-PACKED SET]: The package includes 4 motors, 1 ESC, wiring, plug accessories, 4 propellers, and screws, offering for RC drone enthusiasts.
- [PRECISE CONTROL]: The propellers offer precise control and maneuverability, making them ideal for FPV cross-racing drones and other RC aircraft .
- [DYNAMIC PERFORMANCE]: With a color design of black and red, the motor ESC set adds a and dynamic look to your RC helicopter or drone, enhancing its overall appeal.
1. ESC Features: 30A 4 in 1 brushless ESC has built in 5V BEC output, for blheli s firmware. The motor' heat sink greatly reduces motor temperature.
2. Programmable: The brushless motor and ESC set is programmable, which is an excellent choice for players interested in developing RC FPV drones.
3. Durable Components: PCB adopts high end 6 layer 2oz thickened copper sheet, which has strong overcurrent capability and better heat dissipation. Adopts high current MOS, which has a long life and strong load capacity.
4. Lightweight: With a low center of gravity and lightweight design, it will not cause additional pressure on the RC drone, and the will be smoother.
5. Stable and Anti Drop: Double lock CW CCW lock nut, reinforced anti drop U , and stable. Suitable for RC FPV race drone.
Spec:
Item Type: Brushless Motor ESC Set
Material: PVC, plastic, aluminum alloy
Gross Weight: 189g / 6.7oz
Motor Parameters:
Cover Material: Aluminum alloy
Color: Black and red
Motor Size: 27.7x18mm / 1.1x0.7in (excluding shaft and cable)
Shaft Length: 12mm / 0.5in
Shaft Diameter: 5mm / 0.2in
KV Value: 2300KV
Maximum Thrust: 1024g
Frame: 12N14P
Weight of a Single Motor: 30g / 1.1oz
ESC Parameters:
ESC Size: 36x36mm / 1.4x1.4in
Continuous Current: 30A
Current: 35A (10 seconds)
Input Voltage: 7.4-22.2V (2-6S)
BEC Output: 5V
Firmware: For blheli_s
ESC Weight: 10g / 0.4oz
Propeller Parameters:
Colour: Black
Material: Plastic
Specification: 5054
Applicable: FPV crossing drone

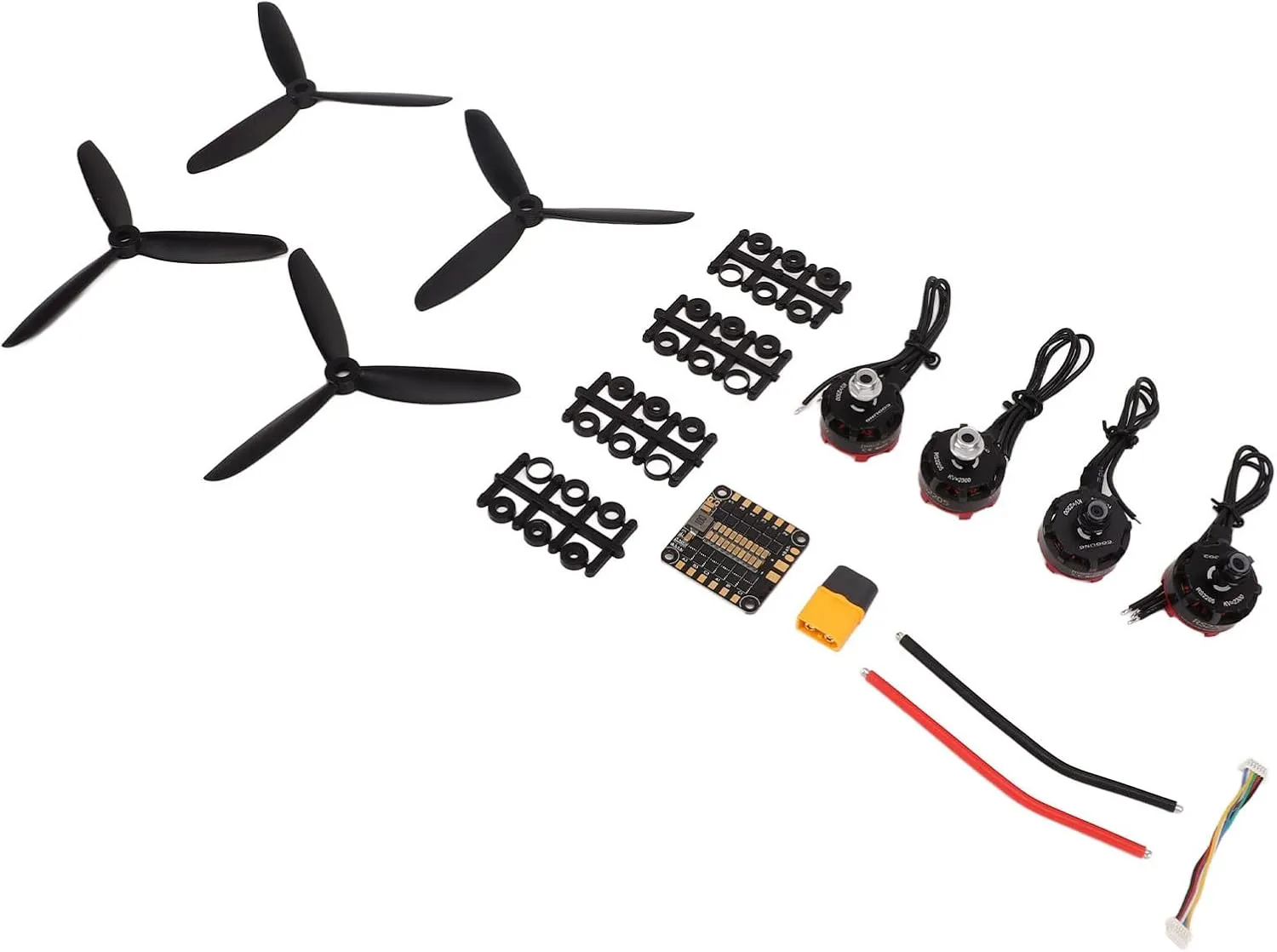

PackageList:
4 x Motor
1 x ESC
3 x Wiring
2 x Plug Accessories
4 x Propeller
4 x Propeller Accessories Row
16 x Screw
Note:
1. The ESC has many integrated functions, and the components are very dense. When installing, please do not use tools (such as needle nose pliers or sleeves) to tighten the nuts, which will easily scratch the fly tower hardware and cause unnecessary losses.
2. The correct method is to press the nut with your fingers, and the can quickly tighten the screw from the bottom. (Remember not to be too tight, so as not to damage the PCB board)
