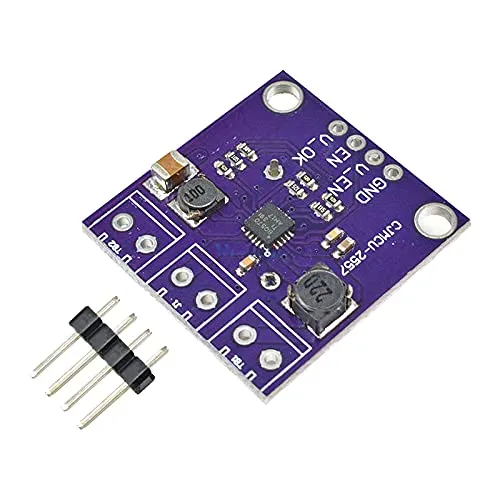

BQ25570 Nano Power Boost Converter Solar Energy Collector Converter Energy Harvester Module Boost Charge Buck Board
Parameters:
Module supply voltage INPUT: DC0.1V-5.1V
Output voltage BAT\OUTPUT: 2V-5.5V
Working environment temperature: -40 ° C ~ 85 ° C
Instructions:
EN: IC enable pin is active low
V_EN: Buck output mode enable pin is active high
V_OK: battery normal output flag
Feature:
The bq25570 is a highly integrated energy harvesting nanopower management solution that is ideally suited to meet the specific needs of ultra low power applications. This product is designed to efficiently acquire and manage microwatt (μW) to milliwatt (mW) levels of power generated from a variety of different DC sources such as photovoltaic (solar), thermoelectric generators, and piezoelectric modules.
The bq25570 is the first such device to implement a high-efficiency boost charger with a nanopower buck converter for products and systems where power and operation are critical for wireless sensor networks (WSNs).
The design of the bq25570 begins with a DC/DC boost converter/charger that requires only microwatts of power to start working. Once activated, the boost charger is capable of efficiently extracting energy from a low voltage output collector such as a thermoelectric generator (TEG) or a single or dual solar panel. The boost converter can be started up to VIN as low as 330mV, and once activated, can continuously acquire energy at VIN as low as 100mV.
The bq25570 also performs a programmable maximum power point tracking sampling network to optimize power transfer into the device. This module is set to 80%.
The bq25570 is designed to be flexible to support a wide range of energy storage components. The energy source from which the energy harvester extracts energy is often not fixed or varies over time. Typically, the system will require some type of energy storage component, such as a recha

• Date First Available ‏ : ‎ June 27, 2021
• Manufacturer ‏ : ‎ Midzoo
