- High Torque Servo: The torque of servo is 7.4V up to 35kg/cm, speed is 0.153sec/60° . 11.1V up to 50kg/cm, speed is 0.10sec/60° and 16.8V up to 60kg/cm, speed is 0.075sec/60°

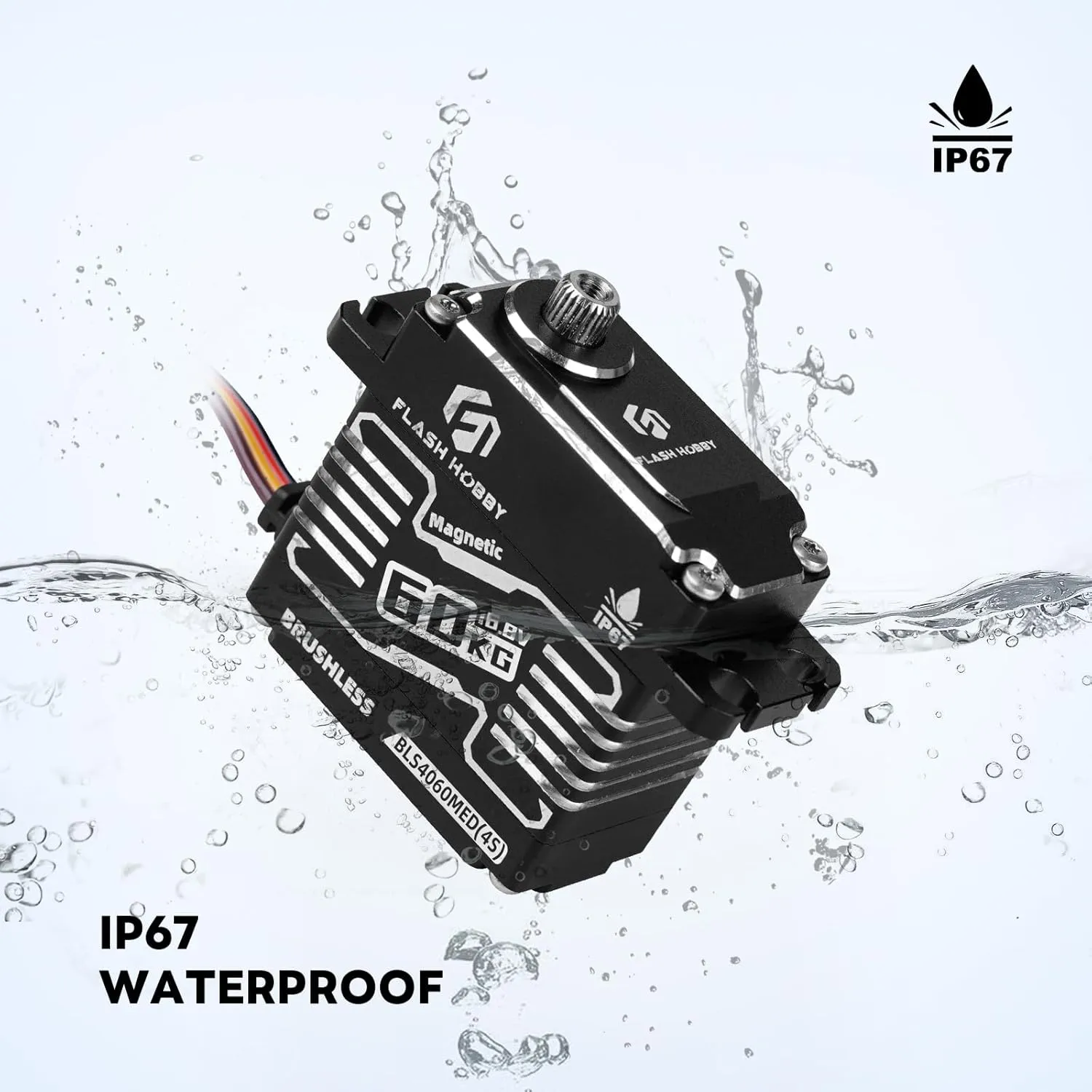

- Waterproof Servo: Equipped with waterproof black O-ring inside, the waterproof level is IP67, makes the RC steering servo can cross the stream and play in the rainy day easily

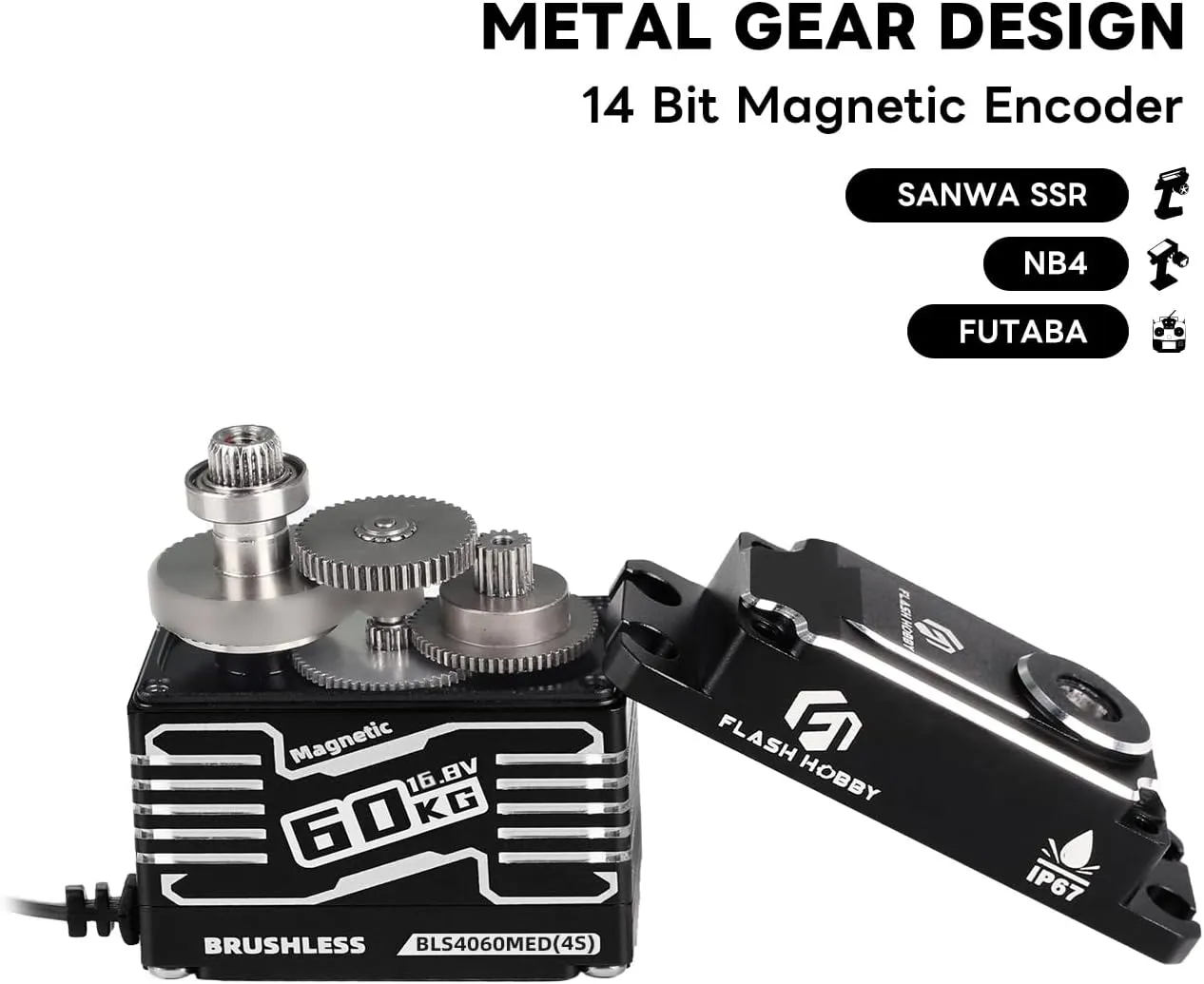

- High Precision: Design with Metal gear, advanced magnetic encoder and dual ball bearings, which ensure the high linearity and accuracy of the M60BHW servo and long life
- Application: IP67 waterproof servo support Sanwa SSR/NB4/Futaba modes, voltage 7.4V~16.8V, compatible 50Hz~1000Hz, which is ideal for 1/8 1/10 scale RC crawler cars, trucks, boats, robotic part and other remote control models

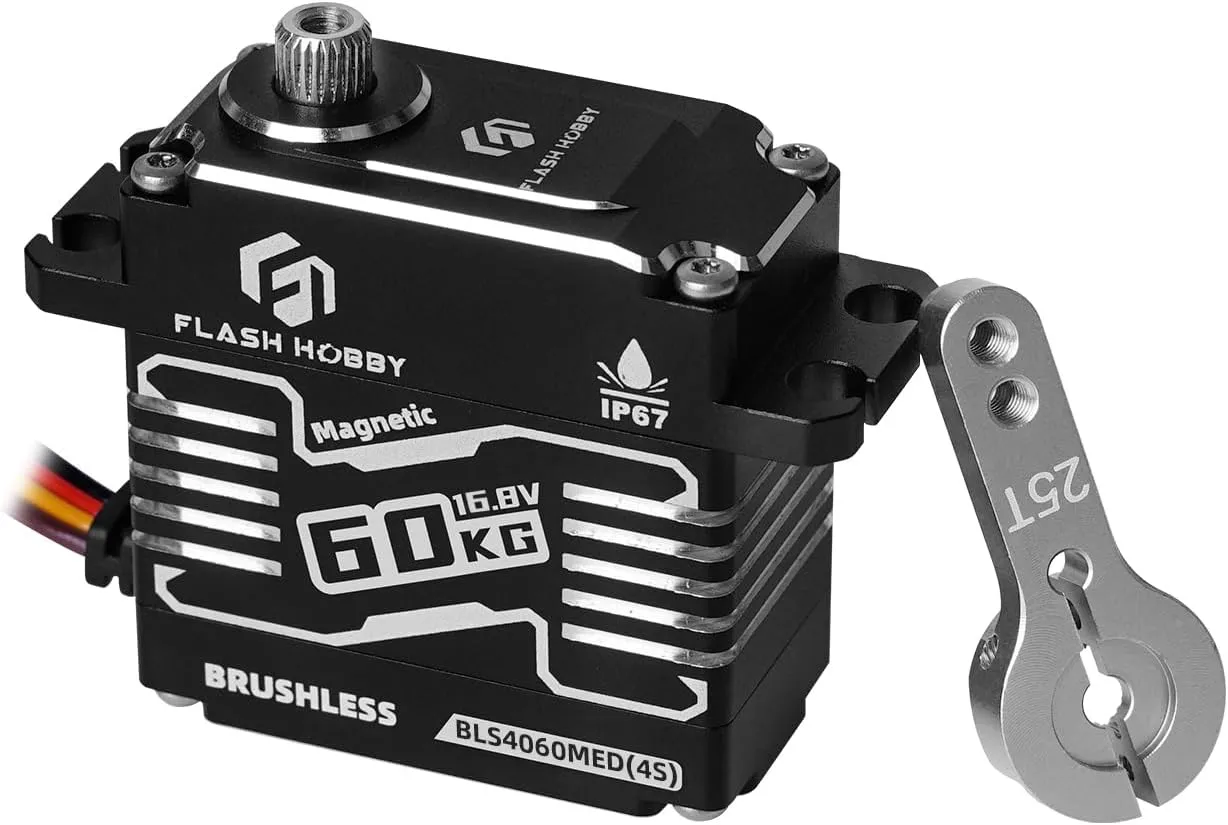

- High Quality: Full CNC AL6061 aluminium shell with good heat dissipation performance. Package includes 1 x 16.8V magnetic encoder servo, 1 x 25T servo horn and a set of accessories
Specification:
Size: 40x20x40.50mm
Weight: 80g±10g(without servo horn)
Gear: steel gears
Torque/Speed:
35.0kg-cm/500 oz-in, 0.153sec/60°@7.4V;
50.0kg-cm/ 583 oz-in, 0.10sec/60°@11.1V;
60.0kg-cm/ 666 oz-in, 0.075sec/60°@16.8V;
Signal Type: Digital Control
Case Material: CNC AL6061 Aluminum Case
Connector Wire Length: 300MM JR Plug
FEATURE:
Programmable PWIM Digital Amplifier
32-Bit MCU with 14Bit Magnetic Encoder
33-High Precision Metal Gear
Wide Operating Voltage (7.4~16.8Volts DC)
Dual Ball Bearing
Supported Output Shaft
25-Tooth Output Spline
Aluminum Heat Sink Shell
Mode Compatible Sanwa SSR,NB4 and Futaba Mode
Metal gears will be with small false space, high bite, low noise and height smoothness
Programmable Functions
-End Point Adjustments
-Direction
-Fail Safe
-Dead Band
-Speed (Slower)
-Soft Start Rate
-Overload Protection
-Data Save/Load
-Program Reset
