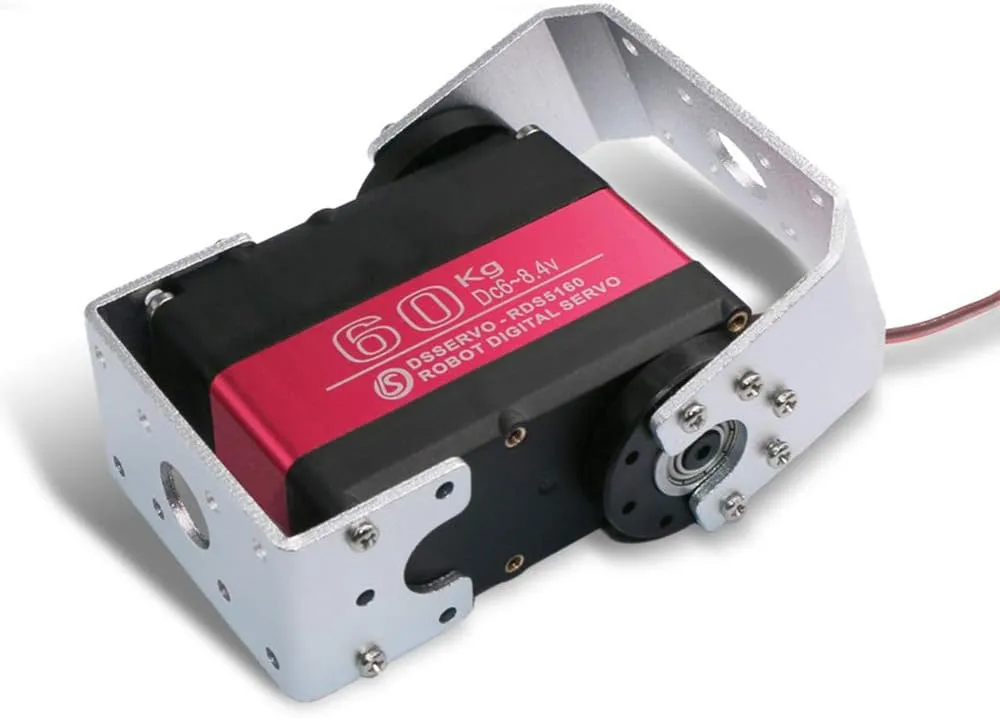

- 60kg RDS5160 Digital Metal Robotic Servo(Control Angle 270°)Mechanical Angle :360 deg
- water-proof ,advanced linearity and accuracy with precision potentiometers,stable,low noise
- best use voltage is 7.4v.Torque: 58kg.cm.at(6v) 65kg.cm.at(7.4v) 70kg.cm.at(8.4v)
- equipped with strong copper & aluminum gears,CNC aluminium middle Shell
- Professional servo kit easy to design and do all kinds of robot,Size:65*30*48(servo)
Note: 1. The best use voltage is 7.4v.
It is recommended to use 2s battery for power supply (6v-8.4v)
2. The working angle of the servo is 270 degree (PWM: 500us-2500us)
Some remote controls can only output 1000-2000, it is recommended to buy 270 degree.
Sepcification:
Package contains:
1 pieces of RDS5160 Digital Metal Robotic Servo
1 pieces of plastic servo arm 18T
1 pieces of plastic servo arm driven
1 pieces of metal Long U
1 pieces of metal Short U
one set of screw(see the picture)
Size:65*30*48(servo)
Weight:162g
Wire length:320mm
Speed: 0.17sec/60 degree at(6v)
0.15sec/60 degree at(7.4v)
0.13sec/60 degree at(8.4v)
Torque: 58kg.cm.at(6v)
65kg.cm.at(7.4v)
70kg.cm.at(8.4v)
Voltage: 6v-8.4v
Dead Zoon setting:3 Microseconds
Features:
- Durable Metal Gear
- Dual Ball Bearing
- Programmable Digital Amplifier with Mosft Drive
- Bottom Side Axial Mount Hole
- Original factory product
- Less Noise
-Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation Angle:maximum 180 or 270 deg
-Mechanical Angle :360 deg
(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)
