- ◆ HIGH PRECISION INSTRUMENT WITH MANY UNIQUE FEATURES - Very Easy setup with a rapid adjustment knob. There are buttons to switch to course or fine adjustment and a button to switch to voltage or current selection. The input voltage is switchable between 110/220 Volts for use in all countries. It has 4 Memory Recall buttons so you can save time setting up the supply to your required conditions.
- ◆ 4 DIGITS READINGS WITH BACK-LIT LED DISPLAY - With a 0.001V and 0.001A resolution, 4 digits provide more accurate and clearer visible readout for the voltage and current values with only 1 knob, extremely durable and easily visible even in low-light usage, meeting the needs of most people, ideal for business, small labs or the hobbyist at home.
- ◆ HIGH-QUALITY WITH ESSENTIAL SAFETY - Grounding wire, thermal protection, voltage and current overload and short-circuit protection ensure the safety. The built-in quiet variable fan reduces the operational noise and prolongs the life of product. There is a load on and off button so you can safely connect your load to the supply. There is also a lock button to prevent accidental changes.
- ◆ CONSTANT VOLTAGE & CURRENT OPERATION MODE - Easy to dial in the desired voltage with the encoded-controlled adjustment knob and then you choose the mode with one of the constant buttons.
- ◆ PROGRAMMABLE CONTROL - USB & RS232 ports for remote control of the power supply. Software is included

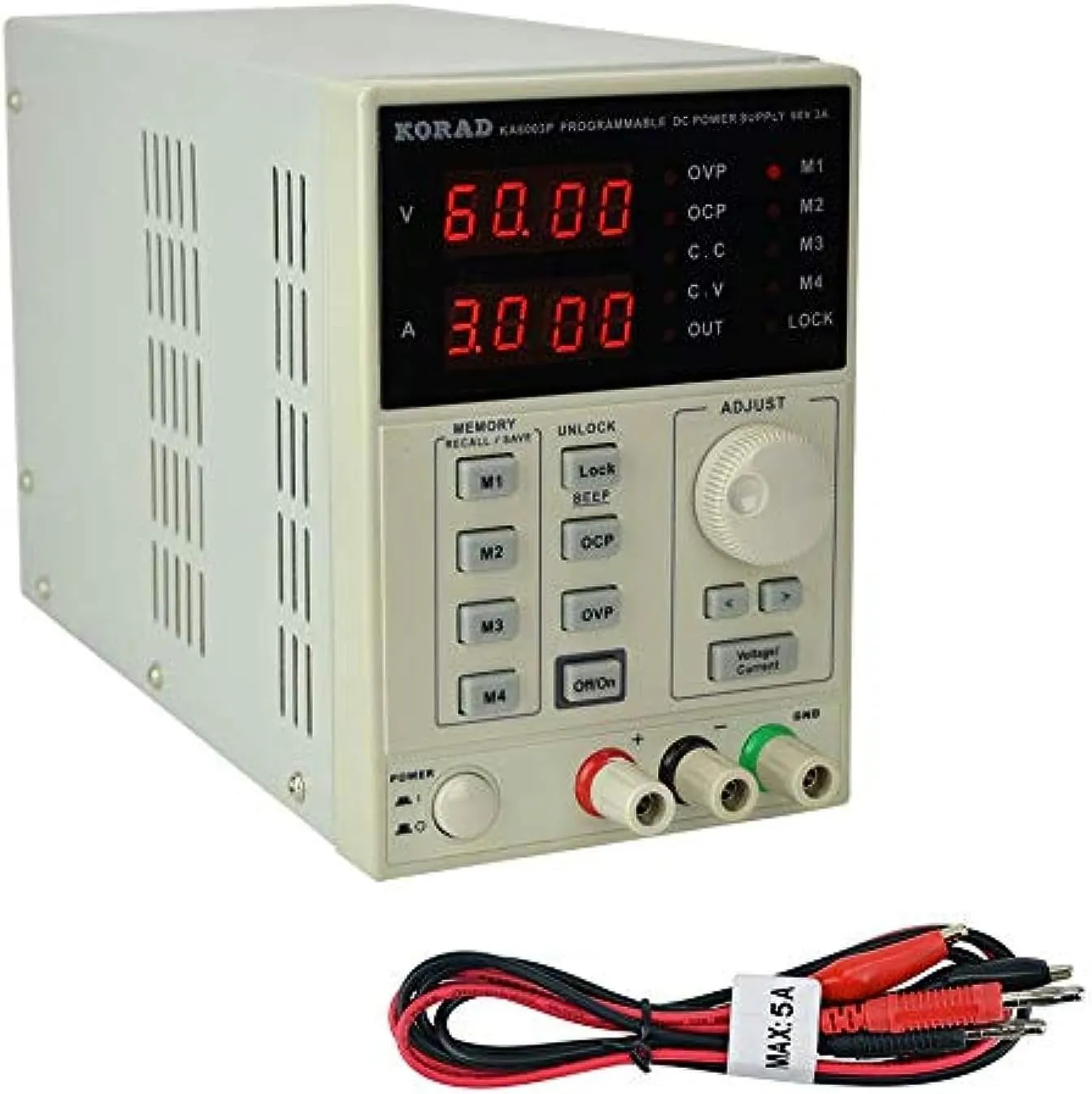

- ◆ WHAT YOU GET - 1 x Korad KA6003P Power supply , 1 x power cord , 1x Set of 5 Amp test leads, 1 x User manual
This is packed with features and at a cost that can't be beat!! It has an easy to read 4 digit LED is used to display the voltage and current values and 4 programmable storage setting.
This is a heavy duty single-channel, constant-voltage and constant-current Linear power supply with low ripple and noise, high reliability and high accuracy.
The voltage and current are continuously adjustable.
It is designed for use in labs, colleges and in production.
Operating Conditions:
Input voltage:110V /-10% switchable to 220V /-10%
Frequency range: 50- 60HzOperating temperature: 32-104 F (0-40 ºC)
Operating humidity:
Storage temperature: 32-158 F (0-70 ºC)
Storage humidity:
Stable Voltage:
Output Voltage Range: 0-60V Continuously adjustableSetup Resolution: 10 mV
Setup Accuracy:
Ripple:
Read back Accuracy: 10 mV
Temp. Coefficient:
Read back Temp. Coefficient:
Stable Current:
Output Current Range: 0-3A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy:
Ripple:
Read back Accuracy: 1 mA
Temp. Coefficient:
Read back Temp. Coefficient:
Weight: 9.5 lbs. (4.3 Kg)
Dimensions: 4.3 x 6.1 x 10.25 inches (110 x 156 x 260mm)
Includes: user's manual, power cable, CD and test leads
2 Year Warranty!
