- arming feature: regardless the throttle stick position, the motor will not spin after connected.
- Throttle calibration: throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
- Made of plastic, and less burrs and good texture. And with better wear resistance, the life time can be longer.
- Made of electronic components, the electronic performance is more stable.
- We are specializing in RC Cars, Boats, Planes accessories,etc. You can buy with confidence.

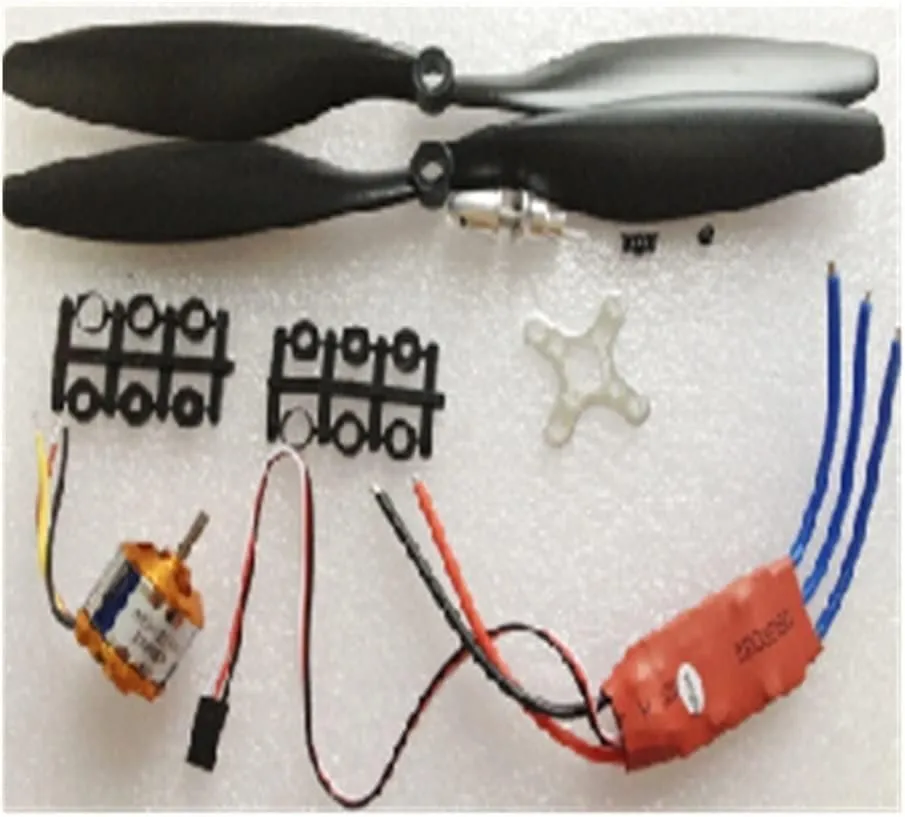

A2212 1000KV 2200 Brushless Outrunner Motor and Fit For SimonK 30A ESC 1045 Propeller(1 pair) Quad-Rotor Set Fit For RC Aircraft Multicopter
Programmable items:
Brake setting: brake enabled / brake disabled.
type: Fit For Li-xx(Fit For Li-ion or Fit For LiPo) / Fit For Ni-xx(Fit For NiMh or Fit For NiCd).
Low voltage protection mode (cutoff mode): gradually reduce the output power / cutoff the output power.
Low voltage cutoff protection threshold (cutoff threshold): low / medium / high.
Start mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
Full protection features: low voltage cutoff protection / over-heat protection / throttle lost protection.
Specifications:
Fit For XXD A2212 1000KV brushless outrunner motor:
Fit For KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz
30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium or 5-12 cells Fit For NiCd/For NIMh
Fit For BEC: 2A / 5V (Fit For Linear mode).
Max speed: 210,000rpm Fit For 2 poles Fit For BLM, 70,000rpm Fit For 6 poles BLM, 35,000rpm Fit For 12 poles Fit For BLM.
(Fit For BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz
Item total weight: 480g / 1.06Lbs
