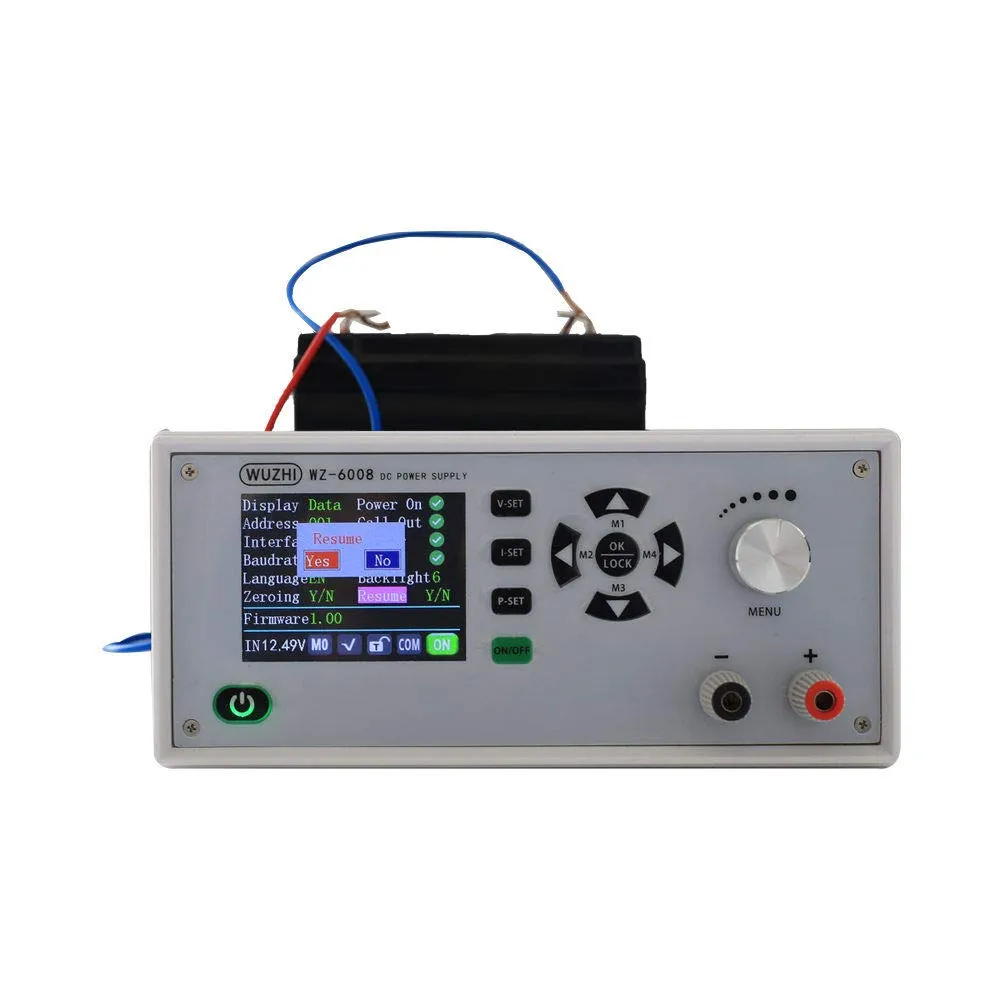

WZ-6008 480W Step Down Power Supply Adapter
1.
Descriptions:
WZ-6008 is a multi-function Step Down Power Supply Module.Its main function is to output voltage as a constant voltage constant current source. It can be used to test the discharge time and discharge capacitance of the input voltage.
It uses a 2.4-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-60.00V adjustable and the output current is adjustable from 0-5.000A.
2.
Features:
1>.Constant Voltage Constant Current output
2>.2.4in High-definition LCD screen display
3>.480W High power output
4>.60V high voltage output
5>.8A maximum current output
6>.Multiple display pages
7>.Support over-voltage protection
8>.Support over-current protection
9>.Support over temperature protection
10>.Support under voltage protection
11>.Support button/parameter lock function
12>.Support 5 sets of data storage function
13>.Parameter super high display resolution
14>.Support statistics running time
15>.Support statistics output capacity
16>.Support statistics output energy
17>.Multiple parameters are displayed simultaneously
18>.Support power-down memory function
19>.Backlight brightness can be set
3.Parameters:
1>.Product name:WZ-6008 480W Step Down Power Supply Adapter
2>.Model:WZ-6008
3>.Input voltage:DC 6.0V~70.0V
4>.Input voltage resolution:0.01V
5>.Output voltage:DC 0.0V~60.0V
6>.Output voltage resolution:0.01V
7>.Output current:0.000A~8.000A
8>.Output Current resolution:0.001A
9>.Output power:0.0W~480.0W
10>.Input voltage precision: /-1%
11>.Output voltage precision: /-0.3%
12>.Output current precision: /-0.5%
13>.Output ripple value:100mW(Peak)
14>.Statistics output time:00:00:00~99:59:59h
15>.Statistics output energy range:0~9999.99Wh
16>.Statistics output capacity range:0~9999.99Ah
17>.Capacity statistical error
