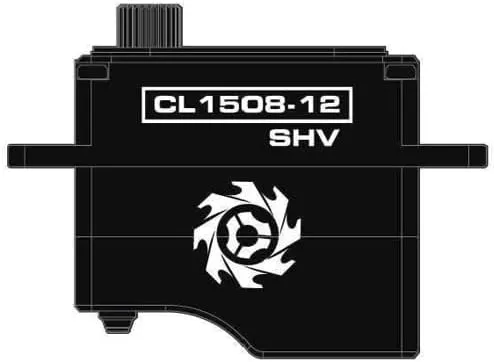

- Unleash next-level cyclic control with the TORQ CL1508-12 Mini SHV Cyclic Servo, built for precision, speed, and raw power!
- With 20.0 kgf.cm of torque at 13V, it delivers unmatched strength to handle the most aggressive 3D maneuvers with ease.
- The coreless DC motor ensures ultra-smooth response, while the hardened steel gear set provides extreme durability under high stress.
- Its aluminum alloy case offers superior thermal dissipation, keeping performance at peak levels during intense flights.
- Designed with 1520us/333Hz working frequency, this servo guarantees fast, accurate, and reliable cyclic control for elite pilots.
- Fully programmable with a soft-start function, it ensures a smooth power-up sequence for added safety.
- Weighing just 35g, the TORQ CL1508-12 packs high-voltage muscle into a mini-sized powerhouse—perfect for 380-520 size RC helicopters. Take control like never before and dominate the skies!
*** Specification:
Rated Voltage: DC12.0V
Voltage Range : DC8.40V-13.0V
Stalling Torque:
[email protected]
[email protected]
20.0 [email protected]
Speed:
0.15sec/60°@8.40V
0.11sec/60°@12.0V
0.10sec/60°@13.0V
Start Current:
[email protected]
[email protected]
[email protected]
Working Frequency: 1520us/333Hz
Default Travel Angle: ±60° =100° Total
Temperature Range: -10℃…… 65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions: 33mm*15mm*30mm±0.2mm
Weight: 35g±10%
Command signal - PWM Command Interface
Signal Voltage:
HIGH: min.3.3V, max.5.0V
Low: min.0.0V, max.1.5V
Pulse Lengths: 900us-2100us
Pulse Lengths for Position: 1000us/1500us/2000us
-50°/ 0°/ 50°
